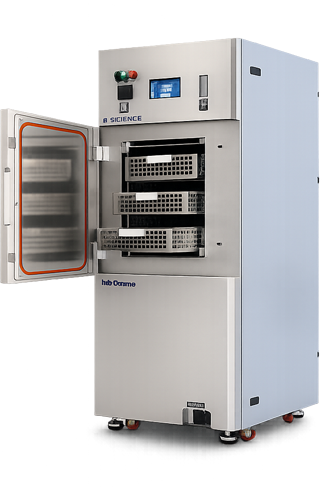

HdrOzone GI
Hydronium Plasma Sterilization Device

Ethylene Oxide, Hydrogen Peroxide, HdrOzone GI Sterilization System Comparison Table

The table compares sterilizers in terms of different parameters and features. Although each of the sterilization methods has its own established characteristics, there are variables that end users should consider.

The ranking shows HdrOzone Sterilization Device as the most suitable sterilizer, with 19/20 points. The second is the Hydrogen Peroxide Gas Plasma Sterilizer, with 10/20, in terms of Cost and Capacity. The third is the Ethylene Oxide Gas Sterilizer, with 8/20, which has limited advantages and higher risks.

Advantages of the HdrOzone^® GI Sterilization Technique in Sterilization

• The new hdrOzone technique and technology uses heavy molecules rather than only hydroxyl.

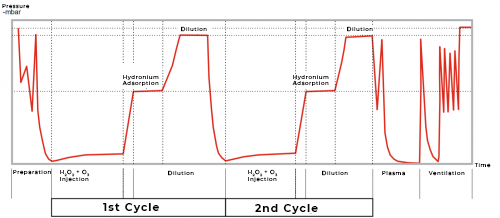

• H₂O₂ + O₃ and gaseous hydronium (H₃O) are used instead of condensed H₂O₂.
• Comprehensive sterilization safety and biofilm effectiveness.
• Short sterilization cycle time.
• Fast sterilization process under full load.
• Sterilization of all types of materials under full load.

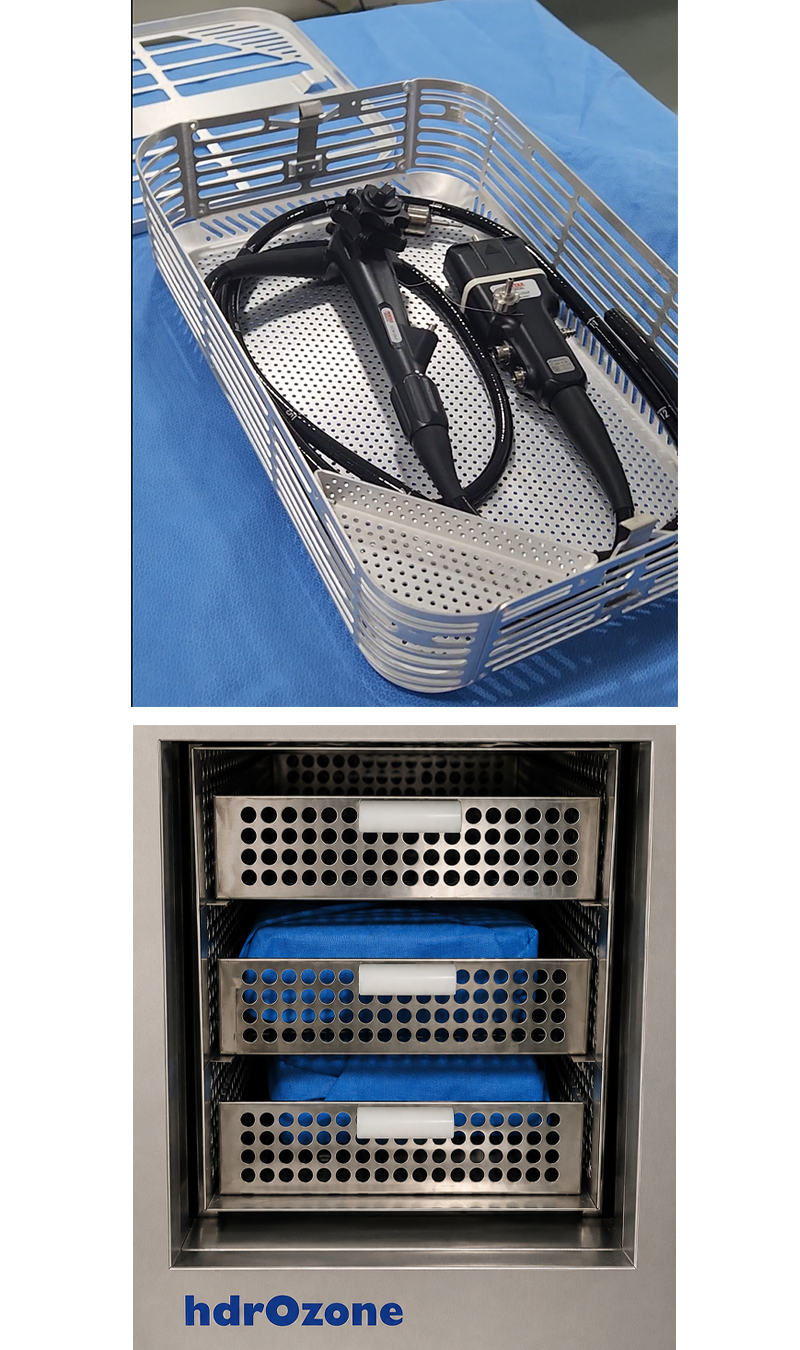

• Up to 3 endoscope containers can be sterilized simultaneously.
• Mixed-load capability.

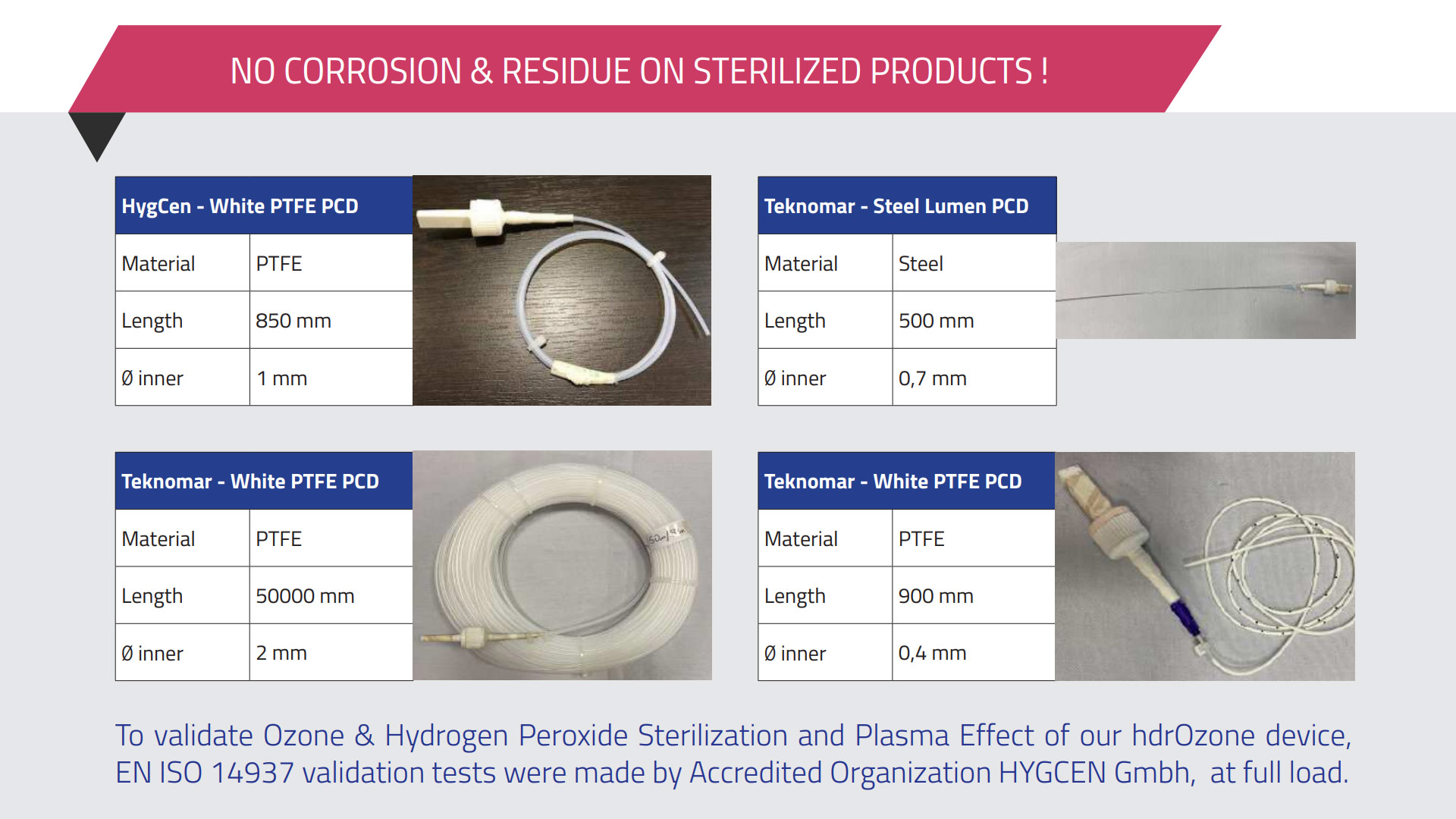

• Effective sterilization of all types of endoscopes without causing corrosion.
• There is no need to separate long-lumen, short-lumen, loads, and other materials when placing materials into the sterilization chamber, nor is there a need to sterilize them separately!
• There is no length limit for lumened devices!
• Moist materials that are not wet can be sterilized. As with other hydrogen peroxide devices, product-drying operation is not required.
• Completes sterilization at low temperature and humidity.
• For sterilization of long and thin lumened devices (1 mm * 100 cm), it sterilizes multiple loads up to 15 meters (2 mm diameter) at full load without requiring a manufacturer declaration.
• Suitable for temperature- and moisture-sensitive materials.
• Since the final products are H₂O and O₂, there is no harm to the environment. It is a safe method for the environment and human health.
• Suitable for full-load sterilization of very long and thin-lumen flexible surgical instruments.
• A sterilization method that leaves no toxic residue.
• Easy, convenient, and safe to use.
• No auxiliary apparatus such as a booster is required.
• No aeration time is required.
• Reduces material-selection errors to zero. Reduces the need for qualified personnel.
• Low unit sterilization cost and labor cost per material.
• The HdrOzone device uses a standard H₂O₂ device cartridge.
• Because sterilization in HdrOzone is performed at FULL load, cartridge consumption is one-third that of standard H₂O₂ devices.

HdrOzone^® GI HRF3000 Sterilization Device INSTALLATION REQUIREMENTS

Always transport the device using a pallet truck. From the unloading location to the installation location, move it using the device's wheels. The device must be installed by our Technical Service. After installation, personnel who will operate the device are trained and instructed on its operation.

For Installation;

• A 220 V AC grounded outlet is required.
• The installation room must have ventilation. The ambient temperature must be between +15 °C and +30 °C.
• There must be at least 60 cm of free space at the rear and sides of the device.
• A minimum 2 bar medical oxygen (O₂) source is required. An oxygen cylinder or hospital oxygen supply can be used. Medical oxygen purity must be greater than 90%.
• The HdrOzone device requires an exhaust connection on the wall.
• The H₂O₂ solutions to be used must be stored in a cool place.
